TFG Light Field Ruler©

TFG Light Field Ruler<sup>&copy;</sup>
Item# TFG-Ruler

Product Description

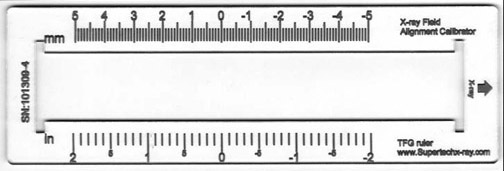

TFG Light Field Ruler

The TFG Ruler© is a Light Field Alignment Calibrator Tool. The TFG Ruler© is designed to work as a stand alone product, or to work in tandem with the RaySafe DXR+ Light Field Alignment Tool.

  • When used with the DXR+ ruler, the TFG Ruler© can be used for x-ray field overlap measurements.
  • The TFG Ruler© gives a permanent record to support the instantaneous reading given by the RaySafe DXR+.
  • The TFG Ruler© is 6 1/2" Long by 2 1/8" Wide by 1/8" Thick. The TFG Ruler© measures from the "Zero Point" to +5mm (+2in) and from the "Zero Point" to the -5mm (-2in)

FFDM X-Ray Field Overlap Measurement Instructions

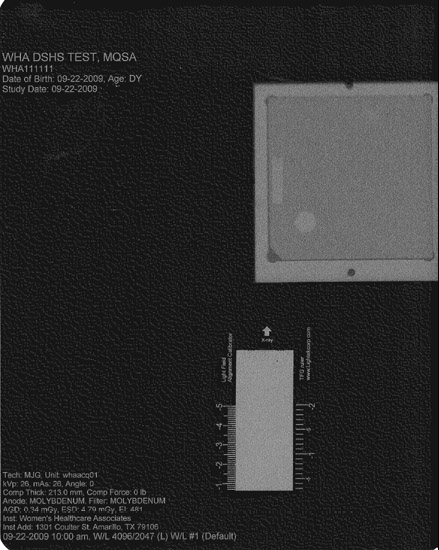

TFG Light Field Ruler x-ray image

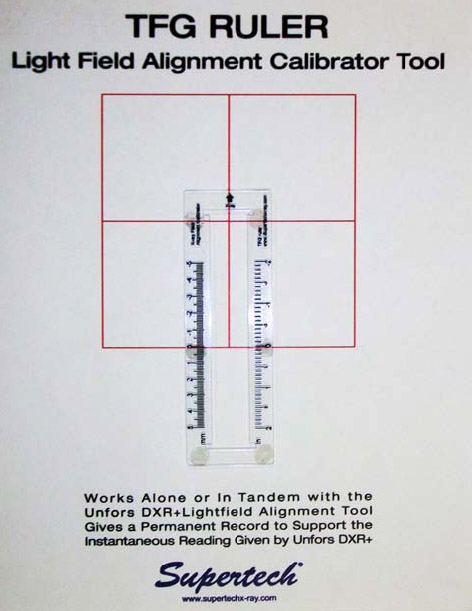

TFG Light Field Ruler calibrator tool
