Multi-Purpose Multi-Tissue Ultrasound Phantom


The new standard for ultrasound quality assurance

Multi-Purpose Multi-Tissue Ultrasound Phantom<br />CIRS 040GSE
Multi-Purpose Multi-Tissue Ultrasound Phantom
CIRS 040GSE
Item# CIRS-040GSE
Regular price: $3,208.00
Sale price: $2,961.00

Product Description

The CIRS Model 040GSE Multi-Purpose Multi-Tissue Ultrasound Phantom not only contains all the features of the original CIRS Model 040, but also includes gray scale targets, anechoic stepped masses and elasticity targets. The phantom is designed to meet the ultrasound QA challenges of today and tomorrow.

The unique dual attenuation of the background gel allows for evaluation of transducers that range from 2 MHz - 15 MHz. A removable water well and endocavity cover extends the use of the phantom by allowing evaluation of all transducer configurations: linear, curvilinear and intercavity.

CIRS ultrasound QA phantoms come standard with a robust housing, rugged carry case, 48-month warranty, and user guide.

Multi-Purpose Multi-Tissue Ultrasound Phantom CIRS 040GSE Phantom Back


US PATENT# 5196343

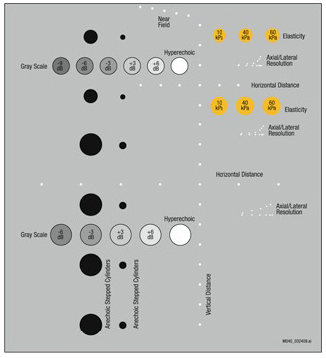

Performance Measurements
  • Dead Zone
  • Horizontal Distance
  • Vertical Distance
  • Depth of Penetration
  • Image Uniformity
  • Axial Resolution
  • Lateral Resolution
  • Anechoic Mass Resolution
  • Gray Scale Contrast Resolution
  • Elasticity Image Evaluation

Multi-Purpose Multi-Tissue Ultrasound Phantom CIRS 040GSE Scanning Wells
Phantom comes with detachable scanning wells to accommodate large sector probes and small endocavity probes. It is packaged in a foam lined carry case.

Multi-Purpose Multi-Tissue Ultrasound Phantom CIRS 040GSE Ultrasound Image

Multi-Purpose Multi-Tissue Ultrasound Phantom CIRS 040GSE Ultrasound Image

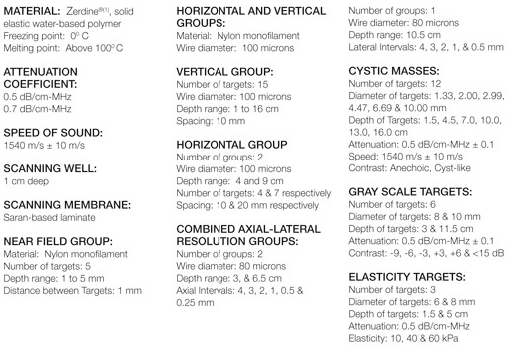

Specifications
Background Material Material: Zerdine®1
Freezing Point: 0® C
Melting Point: Above 100® C
Attenuation: 0.5 dB/cm-MHz ± 0.05 dB/cm-MHz & 0.7 dB/cm-MHz ± 0.05 dB/cm-MHz
Speed of Sound: 1540 m/s ± 10 m/s
Scanning Well 1cm deep
Scanning Membrane Saran-based laminate
Wire Targets Material: Nylon monofilament
Near Field Group Number of Targets: 5
Wire Diameter: 100 microns
Depth range: 1 to 5 mm
Distance between Targets: 1 mm
Vertical Distance Group Number of Targets: 16
Wire Diameter: 100 microns
Depth Range: 1 to 16 cm
Spacing: 10 mm
Horizontal Distance Groups Number of Groups: 2
Wire Diameter: 100 microns
Depths: 4 and 9 cm
Number of Targets: 4 & 7 respectively
Spacing: 10 & 20 mm respectively
Axial-Lateral Resolution Groups Number of Groups: 2
Wire Diameter: 80 microns
Depths: 3 & 6.5 cm
Axial Separation: 4, 3, 2, 1, 0.5 & 0.25 mm
Lateral Separation: 4, 3, 2, 1, 0.5 & 0.25 mm
Number of Groups: 1
Wire Diameter: 80 microns
Depths: 10.5 cm
Axial Separation: 5, 4, 3, 2, & 1 mm
Lateral Separation: 5, 4, 3, 2, & 1 mm
Anechoic Stepped Cylinders Number of Targets: 12
Diameter of Targets: 1.3, 2.0, 3.0, 4.5, 6.7 & 10.0 mm
Depth of Targets: 1.5, 4.5, 7.0, 10.0, 13.0, 16.0 cm
Attenuation: 0.5 dB/cm-MHz
Contrast: Anechoic, Cyst-like
Gray Scale Targets Attenuation: 0.5 dB/cm-MHz
Number of Groups: 2
6 Targets: 8mm Ø at 3 cm depth
Contrast: -9, -6, -3, +3, +6 & > +15 dB
5 Targets: 10mm Ø at 11.5 cm depth
Contrast: -6, -3, +3, +6 & > +15 dB
Elasticity Targets Attenuation: 0.5 dB/cm-MHz
Number of Groups: 2
Number of Targets Per Group: 3
     - 6 mm Ø at 1.5 cm Depth
     - 8 mm Ø at 5 cm Depth
Elasticity: 10, 40 & 60 kPa
Model 040GSE Includes
  • Multi-Purpose Multi-Tissue Ultrasound Phantom
  • Detachable Scanning Wells
    (accommodates large sector probes and small endocavity probes)
  • Foam-lined Carry Case
  • User Guide
  • 48-Month Warranty
