Multipurpose & Endoscopic Ultrasound Phantom
ATS 570

Multipurpose &amp; Endoscopic Ultrasound Phantom<br />ATS 570
Item# ATS-570
$2,985.00

Product Description

Free Shipping (Continental United States Only)

The Model 570 Multipurpose & Endoscopic phantom is an easy, comprehensive means of evaluating imaging systems with an operating frequency range of 2.25 to 7.5 MHz. The phantom is designed with a combination of monofilament line targets for distance measurements and tissue mimicking target structures of varying sizes and contrasts. Due to the acoustic similarity of the background material and the target structures, artifacts caused by distortion, shadowing and enhancement have been eliminated. Four gray scale targets ranging in contrast from +6 to -3 dB are provided to evaluate the system's displayed dynamic range and gray scale processing performance.

The Model 570 offers a new and improved scan surface design to easily accommodate linear, sector, endoscopic probes and mechanical sector probes such as used for rectal scanning.

Scan Surface
Standard Scan Surface Endoscopic Scan Surface Scanning Well

    Tests Performed:
  • Dead Zone or Ring-Down (A1 & A2)
  • Horizontal Measurement Calibration Linear (C1&C2)
  • Horizontal Measurement Calibration Sector (C1 & C2)
  • Sensitivity/Penetration (F)
  • Vertical Measurement Calibration (B1 & B2)
  • Image Uniformity
  • Functional Resolution (F1, F2)
  • Focal Zone (B1, B2 or F)
  • Axial & Lateral Resolution (E1, E2, E3)
  • Contrast, Gray Scale (G1, G2, G3)
    Uses:
  • Quality Assurance
  • Routine Clinical Performance
  • In-process Manufacturing
  • Final Q.A. Inspection
  • Research & Development
  • Teaching

Specifications

General
Overall Dimensions 270 x 215 x 96 cm
Housing Material PVC
Scan Surfaces 2
Scan Wells 1
Weight 4.55 Kg (10 lb)

Tissue Mimicking Material
Type Urethane Rubber
Freezing Point < -40°C
Melting Point > 100°C
Attenuation Coefficient 0.5 dB/cm/MHz ± 5.0%
Speed of Sound 1450 m/s ±1.0% at 23°

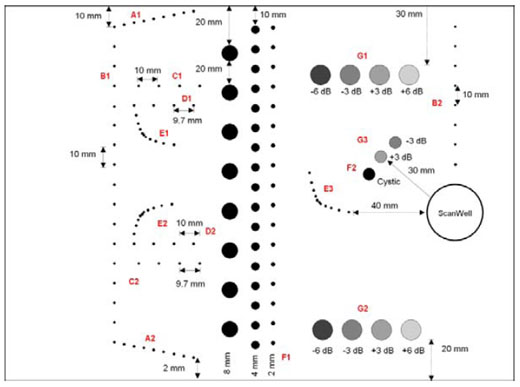

Line Targets
Material
Diameter
Position Tolerance
Monofilament Nylon
.12 mm
± 0.1 mm
Vertical Groups
Number of Targets
Interval Spacing
Depth
B1
17
10 mm
10-160 mm
B2
8
10 mm
10-80 mm
Axial-Lateral
Resolution Groups


Number of Targets

Interval Spacing

Scan Surface Depth
E1
Standard
E2
Endoscopic
E3
Scan Well
6
5, 4, 3, 2, 1 mm
40 mm
60 mm
40 mm
Dead Zone Groups
Lateral Displacement
Interval Spacing
Scan Surface Depth
Standard
Endoscopic
A1
5 mm
1 mm

2-10 mm
A2
5 mm
1 mm


2-10 mm
Horizontal Linear Groups
Number of Targets
Interval Spacing
Scan Surface Depth
Sandard
Endoscopic
C1

5
10 mm

40 mm
C2

5
10 mm


40 mm
Horizontal Sector
Groups
Number of Targets
Interval Spacing
Scan Surface Depth
Standard
Endoscopic
D1

5
10 mm

50mm
D2

5
10 mm


50 mm

Anechoic Target
Structures
F1
F2
Type
Non-echogenic, cylindrical
Size
8, 4, 2 mm
6 mm
Number of Targets
27
1
Depth
10 - 170 mm
30 mm
Interval Spacing
10 & 20 mm
NA
Gray Scale Target
Structures
G1
Standard
G2
Endoscopic
G3
Scann Well
Type
Echogenic, Cylindrical
Diameters
10 mm
10 mm
6 mm
Scan Surface Depth
30 mm
20 mm
30 mm
Number of Targets
4
4
2
Contrast relative to
background material (dB)
+6, +3, -3, -6
+3, -3
*Nominal Dimensions

Lifetime Warranty

Includes Carrying case & built-in scan well to accommodate endoscopic, linear, sector and transrectal probes.
