With Gray Scale and Improved Sensitivity Targets

General Purpose Ultrasound Phantom<br />CIRS 054GS
General Purpose Ultrasound Phantom
CIRS 054GS
Item# CIRS-054GS
Regular price: $1,909.00
Sale price: $1,761.00
Attenuation Coefficient:

Product Description

The CIRS Model 054GS General Purpose Ultrasound Phantom offers all the features of the original Model 054 but now contains gray scale targets and improved sensitivity targets that exceed the phantom requirements outlined in the ACR accreditation program.

The Model 054GS is constructed from the patented solid elastic material, Zerdine®(1). Zerdine is a durable, reliable and accurate tissue mimicking material. The Model 054GS background material mimics the acoustic properties of soft tissue. A removable water well and endocavity cover extends the use of the phantom by allowing evaluation of all transducer configurations: linear, curvilinear and intercavity.

CIRS ultrasound QA phantoms all come standard with a robust housing, rugged carry case, 4-year warranty, and user guide.

(1)US PATENT# 5196343

Performance Measurements
  • Dead Zone
  • Horizontal Distance Accuracy
  • Vertical Distance Accuracy
  • Depth of Penetration
  • Image Uniformity
  • Axial Reslolution
  • Lateral Resolution
  • Anechoic Mass Resolution
  • Gray Scale Contrast Resolution

CIRS 054GS Removable Scanning Wells
Phantom includes detachable scanning wells and air tight case.

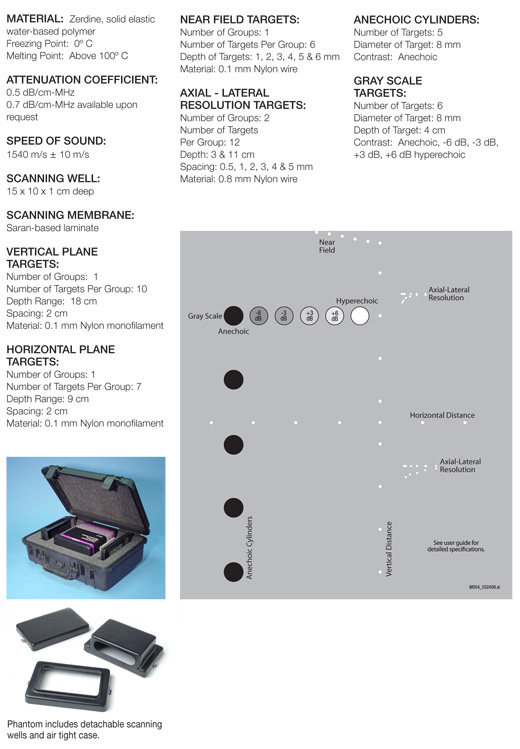

CIRS 054GS Target Diagram

Specifications
Background Material Zerdine®1, solid elastic water-based polymer
Freezing point: 0° C
Melting point: Above 100° C
Attenuation Coefficient 0.5 dB/cm-MHz &
0.7 dB/cm-MHz available upon request
Speed of Sound 1540 m/s
Scanning Well 15 x 10 x 1 cm deep
Scanning Membrane Saran-based laminate
Vertical Plane Targets Number of Groups: 1
Number of Targets Per Group: 10
Depth Range: 18 cm
Spacing: 2 cm
Material: 0.1 mm Nylon monofilament
Horizontal Plane Targets Number of Groups: 1
Number of Targets Per Group: 7
Depth Range: 9 cm
Spacing: 2 cm
Material: 0.1 mm Nylon monofilament
Near Field Targets Number of Groups: 1
Number of Targets Per Group: 6
Depth of Targets: 1, 2, 3, 4, 5 & 6 mm
Material: 0.1 mm Nylon wire
Axial-Lateral Resolution Targets Number of Groups: 2
Number of Targets Per Group: 12
Depth: 3 & 11 cm
3 cm Spacing: 0.25, 0.5, 1, 2, 3, & 4 mm
11 cm Spacing: 1, 2, 3, 4, & 5 mm
Material: 0.8 mm Nylon wire
Anechoic Cylinders Number of Targets: 5
Diameter of targets: 8 mm
Contrast: Anechoic
Gray Scale Targets Number of Targets: 6
Diameter of Target: 8 mm
Depth of Target: 4 cm
Contrast: Anechoic, -6, -3, +3, +6 dB hyperechoic
Model 054GS Includes
  • General Purpose Ultrasound Phantom
  • Detachable Scanning Wells
  • Foam-lined Carry Case
  • User Guide
  • 48 Month Warranty
